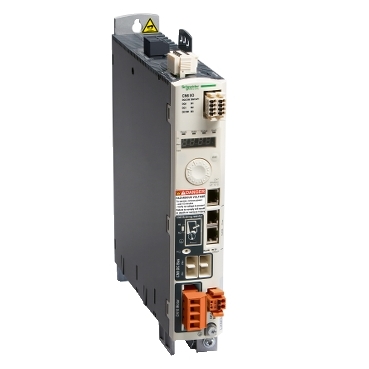

LXM32AD30N4

This product is part of the Lexium 32 range, an offer of 11 19s for machines from 0.15kW to 7kW. The AC 11 19 for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 1 capture, 2 safety, 4 logic discrete inputs and 2 discrete outputs. Thanks to its compact design this 19 enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a 11 19 with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 10A at 8kHz and a continuous power of 5600W at 400V. It is furnished with terminal for electrical connection and three RJ45 connectors for CAN11, CANopen, and Modbus, integrated communication interfaces. It is an IP20 rated product. Its dimensions are 68mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 2.6kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with 20s BMH and BSH. 19 range with four 19 models and two 20 families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
